Switch | DELL | N2048 | Type L3 | Rack 1U | 48x10Base-T / 100Base-TX / 1000Base-T | 2xSFP+ | 1xUSB 2.0 | 2xSAS expansion | 1xConsole | 210-ABNX
Type L3|Rack 1U|Stacking up to 12|Built-in management|48x10Base-T / 100Base-TX / 1000Base-T|2xSFP+|1xUSB 2.0|2xSAS expansion|1xConsole|IEEE 802.1ab|IEEE 802.1D|IEEE 802.1p|IEEE 802.1Q|IEEE 802.2|IEEE 802.3|IEEE 802.3ab|IEEE 802.3ac|IEEE 802.3ad|IEEE
Ei ole laos
2 094,84€
Lisainfo
Kirjeldus
Liisi järelmaks
LHV järelmaks
ESTO järelmaks
Artikkel: | 210-ABNX |
Tootja: | DELL |
Unit Gross Weight: | 5 kg |
Unit Brutto Volume: | 0.02775 cubm |
Vendor Homepage: | i.dell.com/sites/doccontent/shared-content/data-sheets/en/Documents/Dell_Networking_N2000_Series_SpecSheet.pdf |
Unit Net Weight: | 4.05 kg |
Dimensions: | 44x440x257 mm |
USB 2.0: | 1 |
Model name: | N2048 |
Switch type: | L3 |
Console: | 1 |
Power supply: | Inbuilt |
IEEE 802.1p: | Yes |
IEEE 802.1Q: | Yes |
IEEE 802.3ab: | Yes |
IEEE 802.3u: | Yes |
IEEE 802.3x: | Yes |
IEEE 802.3z: | Yes |
IEEE 802.3ad: | Yes |
Auto-negotiation: | Yes |
Full-duplex: | Yes |
IEEE 802.1D: | Yes |
IEEE 802.3: | Yes |
10Base-T / 100Base-TX / 1000Base-T: | 48 |
Primary port count: | 48 |
Switching capacity: | 220 Gbps |
Forwarding rate: | 164 Mpps |
Rack 1U: | Yes |
IEEE 802.1w: | Yes |
IEEE 802.1s: | Yes |
IEEE 802.1x: | Yes |
SFP+: | 2 |
IEEE 802.3ae: | Yes |
SAS expansion: | 2 |
IEEE 802.3ac: | Yes |
Built-in management: | Yes |
Stacking: | up to 12 |
IEEE 802.1v: | Yes |
Software included: | DELL EMC Networking OS 6 |
IEEE 802.2: | Yes |
IEEE 802.1ab: | Yes |
IEEE 802.3az: | Yes |

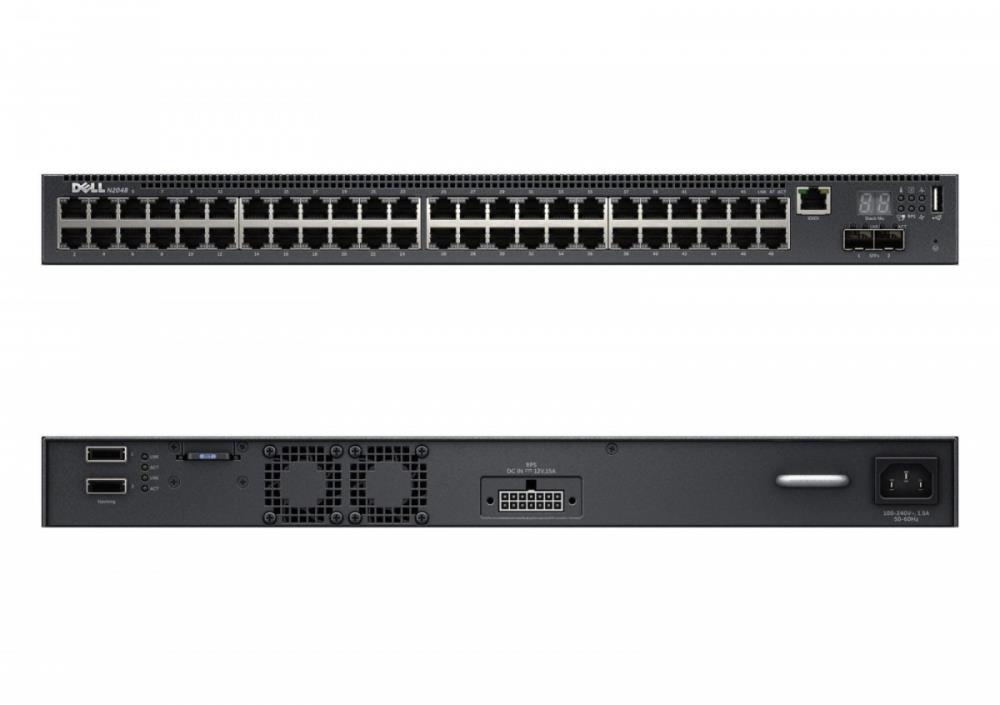

Dell Networking N2048, 48x 1GbE + 2x 10GbE SFP+ fixed ports, Stacking. 1U Rack mountable. Optional Redundant Dual Powered with External PSU RPS-720.
N-Series switches include Dell EMC Networking OS 6, designed for easier deployment, greater interoperability and a lower learning curve for network administrators. One common command line interface (CLI) and graphic user interface (GUI) using a well-known command language gets skilled network administrators productive quickly. With USB auto-configuration, network administrators can rapidly deploy mirrored configurations to numerous devices by simply inserting a USB key.
Optional RPS-720 external power supply (720W) for up to 4x N2000 non-POE switches N2024 and N2048.
The Dell Networking N2000 Series offers enhanced, high-availability Layer 3 Standard Ethernet switches with basic routing functionality that:
The Dell Networking N2000 Series offers enhanced, high-availability Layer 3 Standard Ethernet switches with basic routing functionality that:
- Use MLAG for multipath loop-free redundancy without spanning tree to enable
full-bandwidth utilization and high availability - Promote greater interoperability through interfaces with Cisco's Rapid Per VLAN Spanning Tree (RPVST+) and devices using Cisco Discovery Protocol (CDP)
- Offer a more flexible choice in your network by uniting products with the latest open standard protocols
- Feature Layer 3 IPv4 and IPv6 functionality, including static routing and Routing Information Protocol (RIP version 1 & 2) support for up to 256 interfaces
N-Series switches include Dell EMC Networking OS 6, designed for easier deployment, greater interoperability and a lower learning curve for network administrators. One common command line interface (CLI) and graphic user interface (GUI) using a well-known command language gets skilled network administrators productive quickly. With USB auto-configuration, network administrators can rapidly deploy mirrored configurations to numerous devices by simply inserting a USB key.
- 80 Plus-certified efficient integrated power supply
- Redundant variable-speed cooling fans
- Energy-efficient Ethernet and low-power physical layer (PHYs) to help reduce power to inactive ports and idle links
Optional RPS-720 external power supply (720W) for up to 4x N2000 non-POE switches N2024 and N2048.
