MB AMD B450 SAM4 MATX/B450M PRO-VDH MAX MSI
AMD B450 | SAM4 | MicroATX | 2xPCI-Express 2.0 1x | 1xPCI-Express 3.0 16x | 1xM.2 | DDR4 | 3466/3200/3066/3000/2933/2800/2666 MHz | Memory slots 4 | 1x15pin D-sub | 1xDVI | 1xHDMI | 4xUSB 2.0 | 4xUSB 3.2 | 1xPS/2 | 1xRJ45 | 3xAudio port | USB 2.0 | USB 3.1 | Serial | Parallel | SATA 3.0 | Video Depending on CPU | Audio Realtek ALC892 | LAN Gigabit | RAID SATA 0, 1, 10 | TPM Header
Not available
121,07€
Description
Product data
Liisi hire-purchase
LHV hire-purchase
ESTO hire-purchase
Vendor code: | B450MPRO-VDHMAX |
EAN: | 824142194430 |
Manufacturer: | MSI |
Unit Gross Weight: | 1.04 kg |
Shipping box quantity: | 10 |
Unit Brutto Volume: | 0.006361 cubm |
Shipping Box Width: | 36 cm |
Shipping Box Depth: | 57 cm |
Shipping Box Height: | 31 cm |
Shipping Box Weight: | 10.45 kg |
Vendor Homepage: | www.msi.com/Motherboard/B450M-PRO-VDH-MAX/Specification |
Unit Net Weight: | 0.8 kg |
HDMI: | 1 |
USB 2.0: | Yes |
USB 2.0: | 4 |
15pin D-sub: | 1 |
PS/2: | 1 |
Form Factor: | MicroATX |
SATA 3.0: | Yes |
Socket: | SAM4 |
Memory type: | DDR4 |
Frequency speed: | 2666 MHz |
Frequency speed: | 2800 MHz |
Frequency speed: | 3000 MHz |
Frequency speed: | 3200 MHz |
Frequency speed: | 3066 MHz |
Frequency speed: | 3466 MHz |
Frequency speed: | 2933 MHz |
Chipset: | AMD B450 |
Integrated audio: | Realtek ALC892 |
Integrated LAN: | Gigabit |
Integrated video: | Depending on CPU |
Memory slots: | 4 |
Serial: | Yes |
DVI: | 1 |
RJ45: | 1 |
Audio port: | 3 |
PCI-Express 2.0 1x: | 2 |
PCI-Express 3.0 16x: | 1 |
USB 3.1: | Yes |
TPM: | Header |
M.2: | 1 |
Parallel: | Yes |
RAID: | SATA 0, 1, 10 |
USB 3.2: | 4 |

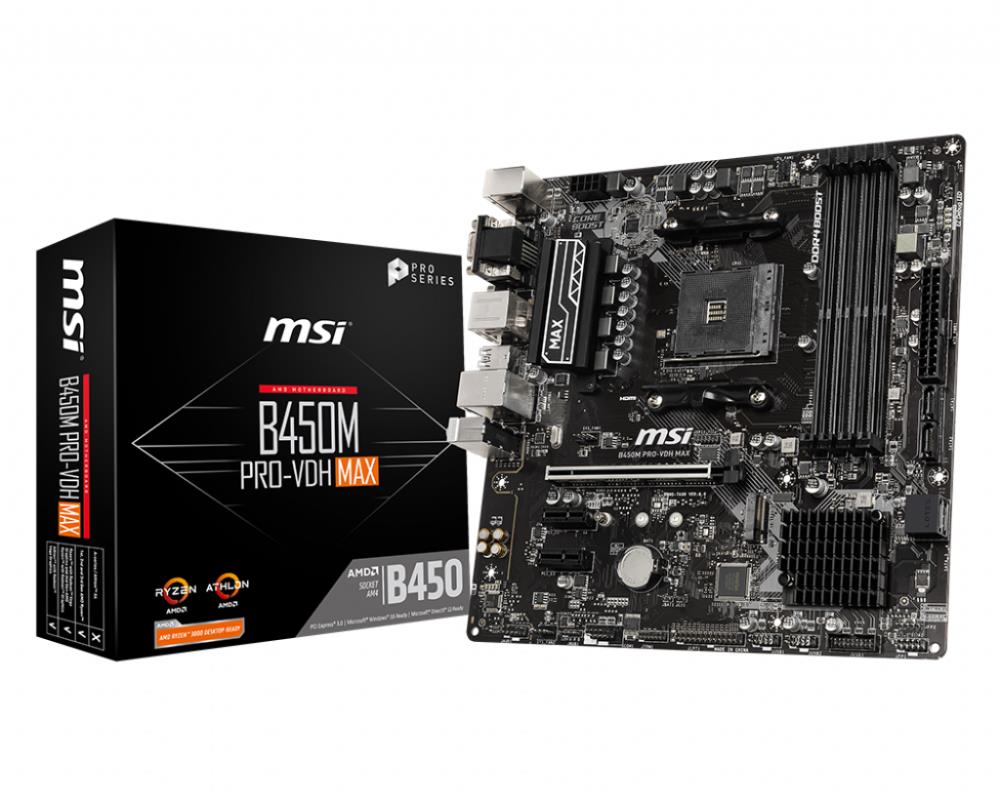

AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Audio Boost, Turbo M.2
- Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
- Supports DDR4 Memory, up to 3466+(OC) MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
- Audio Boost: Reward your ears with studio grade sound quality.
- EZ Debug LED: Easiest way to troubleshoot
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
- PCI-E Steel Armor: Protecting VGA cards against bending and EMI.
