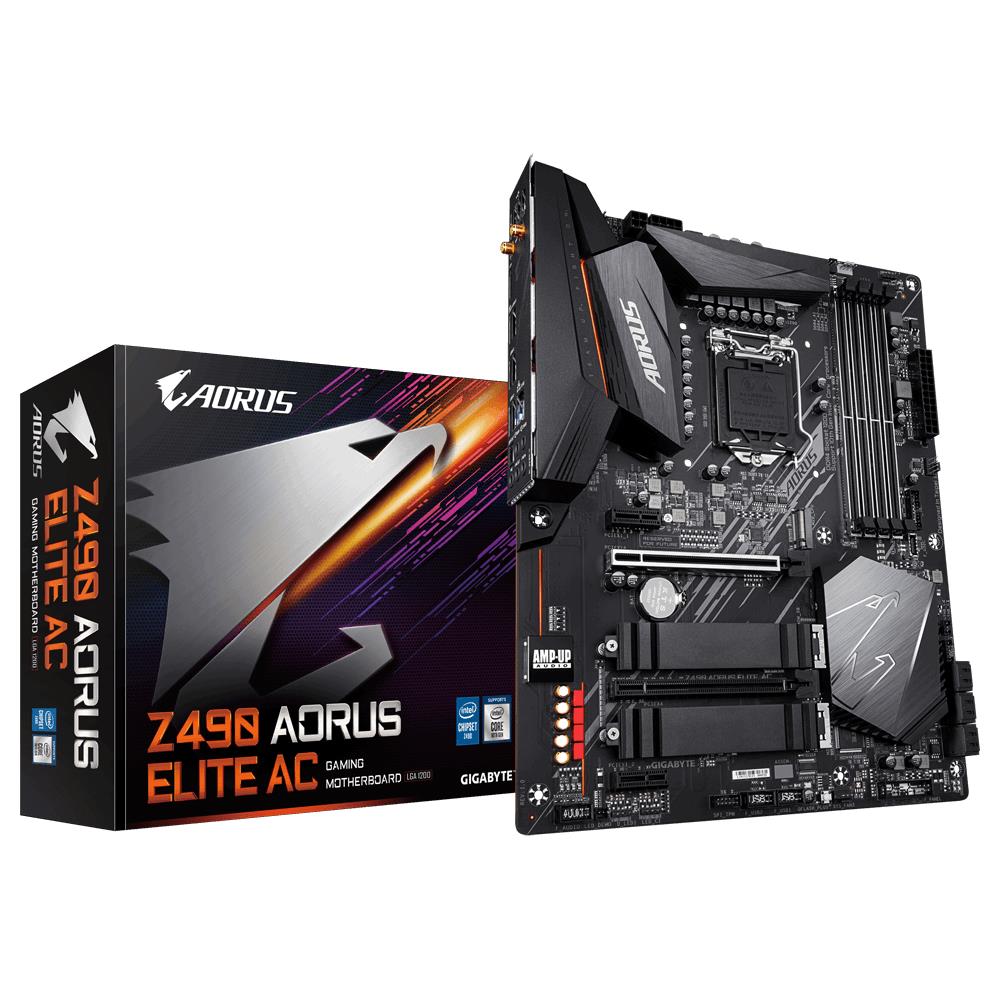

MB Z490 S1200 ATX/Z490 AORUS ELITE AC GIGABYTE
Intel Z490 Express | LGA1200 | ATX | 2xPCI-Express 3.0 1x | 2xPCI-Express 3.0 16x | 2xM.2 | DDR4 | 5000/4933/4800/4700/4600/4500/4400/4300/4266/4133/4000/3866/3800/3733/3666/3600/3466/3400/3333/3300/3200/3000/2933/2800/2666/2400/2133 MHz | Memory slots 4 | 1xHDMI | 6xUSB 3.2 | 1xOptical S/PDIF | 1xRJ45 | 5xAudio port | USB 2.0 | USB 3.2 | USB-C | Thunderbolt | Bluetooth | WiFi | Video | LAN Gigabit | Audio Realtek ALC1220 | RAID SATA 0, 1, 5, 10 | TPM Header
Not available
292,18€
Description
Product data
Liisi hire-purchase
LHV hire-purchase
ESTO hire-purchase
Vendor code: | Z490AORUSELITEAC |
Manufacturer: | GIGABYTE |
Unit Gross Weight: | 2.17 kg |
Shipping box quantity: | 6 |
Unit Brutto Volume: | 0.01027 cubm |
Shipping Box Width: | 31 cm |
Shipping Box Depth: | 53 cm |
Shipping Box Height: | 37.5 cm |
Shipping Box Weight: | 13 kg |
Vendor Homepage: | www.gigabyte.com/Motherboard/Z490-AORUS-ELITE-AC-rev-10#kf |
Unit Net Weight: | 1.6 kg |
HDMI: | 1 |
USB 2.0: | Yes |
Form Factor: | ATX |
Socket: | LGA1200 |
Memory type: | DDR4 |
Frequency speed: | 4500 MHz |
Frequency speed: | 2133 MHz |
Frequency speed: | 4600 MHz |
Frequency speed: | 2400 MHz |
Frequency speed: | 4400 MHz |
Frequency speed: | 2666 MHz |
Frequency speed: | 4266 MHz |
Frequency speed: | 2800 MHz |
Frequency speed: | 4133 MHz |
Frequency speed: | 3000 MHz |
Frequency speed: | 4000 MHz |
Frequency speed: | 3200 MHz |
Frequency speed: | 3866 MHz |
Frequency speed: | 3800 MHz |
Frequency speed: | 3666 MHz |
Frequency speed: | 3733 MHz |
Frequency speed: | 3466 MHz |
Frequency speed: | 4933 MHz |
Frequency speed: | 3600 MHz |
Frequency speed: | 5000 MHz |
Frequency speed: | 3400 MHz |
Frequency speed: | 4800 MHz |
Frequency speed: | 3333 MHz |
Frequency speed: | 4700 MHz |
Frequency speed: | 3300 MHz |
Frequency speed: | 4300 MHz |
Frequency speed: | 2933 MHz |
Chipset: | Intel Z490 Express |
Integrated audio: | Realtek ALC1220 |
Integrated LAN: | Gigabit |
Integrated video: | Yes |
Memory slots: | 4 |
RJ45: | 1 |
Audio port: | 5 |
PCI-Express 3.0 16x: | 2 |
TPM: | Header |
M.2: | 2 |
Bluetooth: | Yes |
RAID: | SATA 0, 1, 5, 10 |
Optical S/PDIF: | 1 |
WiFi: | Yes |
PCI-Express 3.0 1x: | 2 |
Thunderbolt: | Yes |
USB-C: | Yes |
USB 3.2: | Yes |
USB 3.2: | 6 |
Intel® Z490 AORUS Motherboard with Direct 12 Phases Digital VRM Design, Comprehensive Thermal Solution with Enlarged Surface Heatsink, Intel® Dual Band 802.11ac WIFI, 2.5GbE LAN, RGB FUSION 2.0
- Supports 10th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Intel® Optane™ Memory Ready
- Direct 12 Phases Digital VRM Solution with 50A DrMOS
- Shielded Memory Routing for Better Memory Overclocking
- Advanced Thermal Design with Enlarged Surface Heatsink
- Onboard Intel® Dual Band 802.11ac WIFI & BT5 with AORUS Antenna
- AMP-UP Audio with ALC1200 and WIMA Audio Capacitors
- Fast 2.5GbE LAN with Bandwidth Management
- Dual Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guards
- Pre-installed IO Shield for Easy and Quick Installation
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
