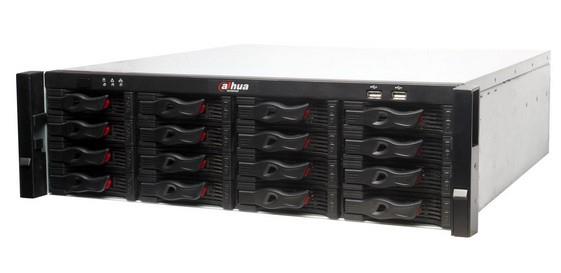

NET VIDEO RECORDER 128CH/NVR616R-128-4KS2 DAHUA
Channels 128|Drives/bays 16|Rack 3U|SATA|1x15pin D-sub|2xHDMI|1xRS232|2xUSB 2.0|2xUSB 3.0|4xRJ45|16xAlarm In|8xAlarm Out|Power supply requirements AC100V ~ 240V, 50 ~ 60 Hz|Power consumption 51 Watts|Dim. 485 x 512.9 x 133.2mm|Temp. range -10°C ~ +55
Not available
7 531,20€
Description
Product data
Liisi hire-purchase
LHV hire-purchase
ESTO hire-purchase
Vendor code: | DHI-NVR616R-128-4KS2 |
EAN: | 6939554915901 |
Manufacturer: | DAHUA |
Unit Gross Weight: | 24.1 kg |
Shipping box quantity: | 1 |
Unit Brutto Volume: | 0.1737 cubm |
Shipping Box Width: | 40 cm |
Shipping Box Depth: | 69.5 cm |
Shipping Box Height: | 62.5 cm |
Shipping Box Weight: | 24.15 kg |
Vendor Homepage: | www.dahuasecurity.com/products/productDetail/6461 |
Unit Net Weight: | 19.1 kg |
Dimensions: | 485 x 512.9 x 133.2mm |
Power supply requirements: | AC100V ~ 240V, 50 ~ 60 Hz |
Operating temperature range: | -10°C ~ +55°C |
HDMI: | 2 |
USB 3.0: | 2 |
SATA: | Yes |
Power consumption: | 51 Watts |
USB 2.0: | 2 |
15pin D-sub: | 1 |
RJ45: | 4 |
Number of channels: | 128 |
Alarm In: | 16 |
Alarm Out: | 8 |
RS232: | 1 |
Number of drives/bays: | 16 |
Rack 3U: | Yes |
- 128 IP channel max, up to 12MP resolution
- Max 12MP, Record Rate 384 Mbps, H.265/H.264/MJPEG
- 2x HDMI/ 1x VGA simultaneous video output up to 3840 x 2160
- 16 SATA III Ports, Up to 8 TB capacity for each HDD, Raid 0/1/5/6/10, Support Global HDD Hot-spare
- 4 RJ-45 ports (10/100/1000Mbps), 1x eSATA, 1x Mini SAS
- 16/8 alarm I/O, RS232, 4x USB, RS485, 2 Giga Optical Fiber Interface
- 3U 19” chassis, no front panel control, mouse included, Redundant power supply
- Other brands IP cameras supported: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc., ONVIF 2.4
- Smart Tracking and Intelligent Video
- Free IP monitoring software available
