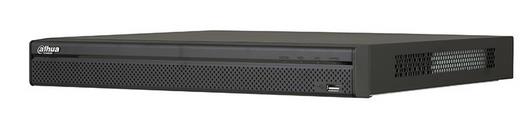

NET VIDEO RECORDER 32CH 16POE/NVR5232-16P-4KS2E DAHUA
Channels 32|Drives/bays 2|Rack 1U|CPU Quad-core embedded processor|SATA|Integrated LAN Gigabit|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|1xRS232|1xUSB 2.0|1xUSB 3.0|1xRJ45|1xRS-485|4xAlarm In|2xAlarm Out|Power supply requirements Single, AC100V ~ 2
Not available
1 186,20€
Description
Product data
Liisi hire-purchase
LHV hire-purchase
ESTO hire-purchase
Vendor code: | DHI-NVR5232-16P-4KS2E |
EAN: | 6939554939044 |
Manufacturer: | DAHUA |
Unit Gross Weight: | 4.1 kg |
Shipping box quantity: | 1 |
Unit Brutto Volume: | 0.03175 cubm |
Shipping Box Width: | 16.8 cm |
Shipping Box Depth: | 45 cm |
Shipping Box Height: | 42 cm |
Shipping Box Weight: | 4.1 kg |
Vendor Homepage: | www.dahuasecurity.com/products/productDetail/19851 |
Unit Net Weight: | 2.7 kg |
Dimensions: | 375 x 326.5 x 53mm |
Power supply requirements: | Single, AC100V ~ 240V, 50 ~ 60 Hz |
HDMI: | 1 |
USB 3.0: | 1 |
SATA: | Yes |
Power consumption: | 15.2 Watts |
USB 2.0: | 1 |
Audio-Out: | 1 |
15pin D-sub: | 1 |
Integrated LAN: | Gigabit |
RJ45: | 1 |
Audio-In: | 1 |
Number of channels: | 32 |
Alarm In: | 4 |
Alarm Out: | 2 |
RS232: | 1 |
CPU: | Quad-core embedded processor |
RS-485: | 1 |
PoE ports: | 16 |
Number of drives/bays: | 2 |
Rack 1U: | Yes |
•32 IP channel max, up to 12MP resolution
•Max 12MP, Record Rate 320Mbps
•VGA/HDMI up to 3840x2160 output
•Dual-stream, 16-ch synchronous playback
•2 SATA interface up to 20TB, Gigabit LAN
•No front panel controls, 4/2 alarm I/O, RS232, RS485, 2 USB
•PoE: Max 25.5W for single port, 130W total rated power, 80% control for protection
•1U 19” chassis, mouse included
•Free IP monitoring software available
•Smart capabilities support: People Counting, Heat Map, Face Detection, Tripwire, Intrusion, Abandoned/Missing Objects
•Other brands IP cameras supported: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, etc., ONVIF Version 2.4 conformance
•Max 12MP, Record Rate 320Mbps
•VGA/HDMI up to 3840x2160 output
•Dual-stream, 16-ch synchronous playback
•2 SATA interface up to 20TB, Gigabit LAN
•No front panel controls, 4/2 alarm I/O, RS232, RS485, 2 USB
•PoE: Max 25.5W for single port, 130W total rated power, 80% control for protection
•1U 19” chassis, mouse included
•Free IP monitoring software available
•Smart capabilities support: People Counting, Heat Map, Face Detection, Tripwire, Intrusion, Abandoned/Missing Objects
•Other brands IP cameras supported: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, etc., ONVIF Version 2.4 conformance
