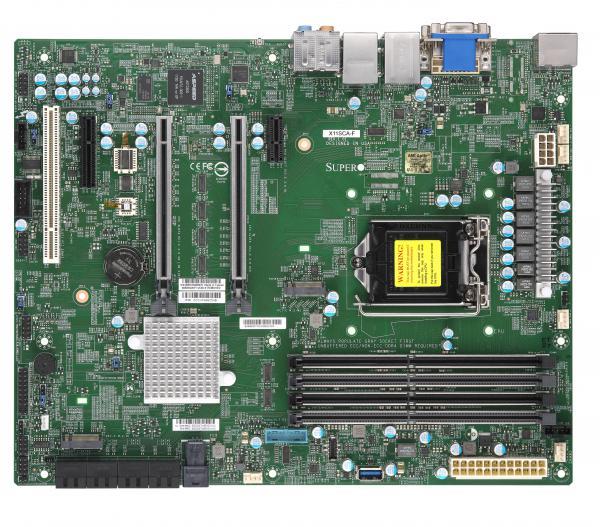

SERVER MB C246 S1151 ATX/MBD-X11SCA-F-O SUPERMICRO
Intel C246 | LGA1151 | CPU's Xeon UP | Maximum number of CPUs 1 | ATX | 1xPCI-Express 3.0 1x | 1xPCI-Express 3.0 4x | 2xPCI-Express 3.0 8x | 1xPCI-Express 3.0 16x | 2xM.2 | DDR4 | 2666/2400/2133 MHz | Memory features UDIMM/ECC | Memory slots 4 | 1x15pin D-sub | 1xDVI | 1xHDMI | 1xDisplayPort | 3xUSB 3.1 | 1xUSB type C | 1xOptical S/PDIF | 2xRJ45 | 5xAudio port | USB 2.0 | USB 3.1 | SATA 3.0 | Video | Audio | LAN Gigabit | RAID SATA 0, 1, 5, 10 | Included Accessories CBL-0044L Sata cables
Not available
499,86€
Description
Product data
Liisi hire-purchase
LHV hire-purchase
ESTO hire-purchase
Vendor code: | MBD-X11SCA-F-O |
EAN: | 672042324538 |
Manufacturer: | SUPERMICRO |
Unit Gross Weight: | 1.1 kg |
Shipping box quantity: | 1 |
Unit Brutto Volume: | 0.006188 cubm |
Shipping Box Width: | 26 cm |
Shipping Box Depth: | 34 cm |
Shipping Box Height: | 7 cm |
Shipping Box Weight: | 1.1 kg |
Vendor Homepage: | www.supermicro.com/products/motherboard/X11/X11SCA-F.cfm |
Unit Net Weight: | 1 kg |
HDMI: | 1 |
Included Accessories: | CBL-0044L Sata cables |
USB 2.0: | Yes |
15pin D-sub: | 1 |
Form Factor: | ATX |
SATA 3.0: | Yes |
Socket: | LGA1151 |
Memory type: | DDR4 |
Frequency speed: | 2133 MHz |
Frequency speed: | 2400 MHz |
Frequency speed: | 2666 MHz |
Memory features: | ECC |
Memory features: | UDIMM |
Chipset: | Intel C246 |
Integrated audio: | Yes |
Integrated LAN: | Gigabit |
Integrated video: | Yes |
Memory slots: | 4 |
DVI: | 1 |
RJ45: | 2 |
Audio port: | 5 |
PCI-Express 3.0 16x: | 1 |
USB 3.1: | Yes |
USB 3.1: | 3 |
M.2: | 2 |
Maximum number of CPUs: | 1 |
RAID: | SATA 0, 1, 5, 10 |
CPU's: | Xeon UP |
PCI-Express 3.0 8x: | 2 |
DisplayPort: | 1 |
Optical S/PDIF: | 1 |
PCI-Express 3.0 4x: | 1 |
PCI-Express 3.0 1x: | 1 |
USB type C: | 1 |
1. Intel® 8th/9th Generation Core i9/Core i7/Core i5/Core i3/Pentium®/Celeron® series Processor, Intel® Xeon® E-2100/E-2200 Processor. Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP(Coffee Lake-S) Server, Intel® Xeon® E processor (Coffee Lake-S) Workstation., Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
2. Intel® C246
3. Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
4. 1 PCI-E 3.0 x4,
1 PCI-E 3.0 x1,
2 PCI-Ex16 slots are running at NA/16, or 8/8
1 - 5V PCI 32bit
M.2 Interface: 2 PCI-E 2.0 x4
M.2 Form Factor: 2242/2260/2280/22110
M.2 Key: M-Key
M.2#1~2 are shared with PCI-Ex4 slot,
M.2#2 is shared with U.2
U.2 Interface: 1 PCI-E 3.0 x4
5. 1 HDMI port, 1 DVI - D port, 1 DP (DisplayPort) port, 1 VGA port,
6. Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
7. Single LAN with Intel® Ethernet Controller I210-AT shared with IPMI
Single LAN with Intel® PHY I219LM LAN controller
2. Intel® C246
3. Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
4. 1 PCI-E 3.0 x4,
1 PCI-E 3.0 x1,
2 PCI-Ex16 slots are running at NA/16, or 8/8
1 - 5V PCI 32bit
M.2 Interface: 2 PCI-E 2.0 x4
M.2 Form Factor: 2242/2260/2280/22110
M.2 Key: M-Key
M.2#1~2 are shared with PCI-Ex4 slot,
M.2#2 is shared with U.2
U.2 Interface: 1 PCI-E 3.0 x4
5. 1 HDMI port, 1 DVI - D port, 1 DP (DisplayPort) port, 1 VGA port,
6. Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
7. Single LAN with Intel® Ethernet Controller I210-AT shared with IPMI
Single LAN with Intel® PHY I219LM LAN controller
