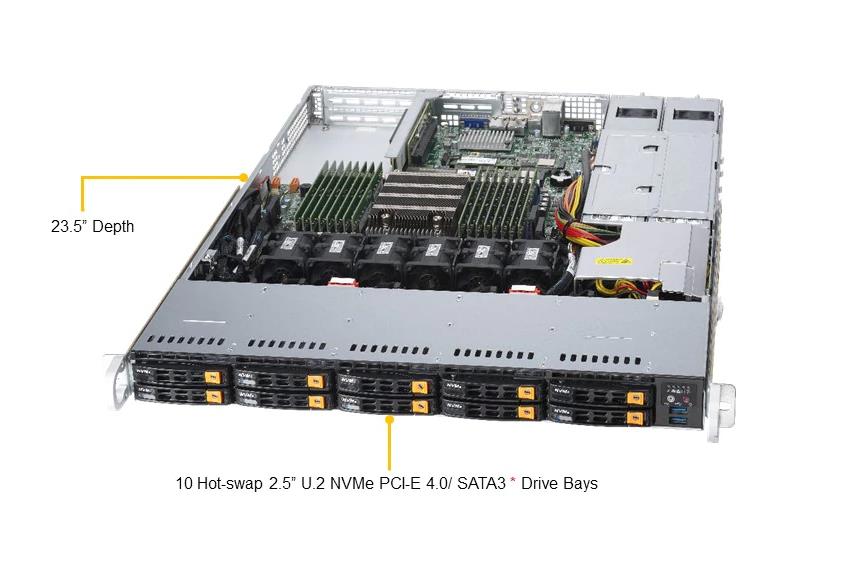

SERVER SYSTEM 1U SAS/SATA/AS-1114S-WN10RT SUPERMICRO
Case Type 1U rack | Chipset SoC integrated | Socket SP3 | CPU's AMD EPYC | Maximum number of CPUs 1 | 3xPCI-Express 4.0 16x | 2xM.2 | 1x15pin D-sub | 7xUSB 3.0 | 3xRJ45 | Memory type DDR4 | Frequency speed 3200 MHz | Memory features RDIMM | Memory slots 16 | PSU Redundant-Power-Capable | PSU Output Power 750 Watts | 10x2.5" NVME/SATA Hot-swap | Cooling & Ventilation System 6 heavy duty fans with Optimal Fan Speed Control | Included Accessories RAIL Kit, Software Out of Band License key
Not available
2 796,80€
Description
Product data
Liisi hire-purchase
LHV hire-purchase
ESTO hire-purchase
Vendor code: | AS-1114S-WN10RT |
Manufacturer: | SUPERMICRO |
Unit Gross Weight: | 17.7 kg |
Unit Brutto Volume: | 0.0972 cubm |
Vendor Homepage: | www.supermicro.com/en/Aplus/system/1U/1114/AS-1114S-WN10RT.cfm |
Unit Net Weight: | 11.34 kg |
Dimensions: | 437 x 44 x 597 mm |
USB 3.0: | 7 |
Included Accessories: | RAIL Kit, Software Out of Band License key |
Case Type: | 1U rack |
PSU Output Power: | 750 Watts |
15pin D-sub: | 1 |
Socket: | SP3 |
Memory type: | DDR4 |
Frequency speed: | 3200 MHz |
Memory features: | RDIMM |
Chipset: | SoC integrated |
Memory slots: | 16 |
RJ45: | 3 |
M.2: | 2 |
Cooling & Ventilation System: | 6 heavy duty fans with Optimal Fan Speed Control |
PSU: | Redundant-Power-Capable |
Maximum number of CPUs: | 1 |
CPU's: | AMD EPYC |
PCI-Express 4.0 16x: | 3 |
2.5" NVME/SATA Hot-swap: | 10 |
Key Features Virtualization
Cloud Computing
All Flash Storage
1.Single AMD EPYC™ 7003/7002 Series Processor
(7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
2.16 DIMMs; up to 4TB 3DS ECC
DDR4-3200MHz RDIMM/LRDIMM
3.2 PCI-E 4.0 x16 (FHHL) slots,
1 PCI-E 4.0 x16 (LP) slot
4.Integrated IPMI 2.0 + KVM with
dedicated LAN
• Software Out of Band License key
(SFT-OOB-LIC) included for
OOB BIOS management
5.10 Hot-swap U.2 NVMe4/NVMe3/SATA3
fully hybrid drive support
6.2x 10GBase-T LAN ports via
Broadcom BCM57416 Controller
7.1 VGA,
7 USB 3.0 (4 rear, 2 front, 1 Type A)
8.2 SuperDOM (Disk on Module) ports
9.750W Redundant Power Supplies
Platinum Level High-efficiency
(Full redundancy based on
configuration and application load)
Cloud Computing
All Flash Storage
(7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
DDR4-3200MHz RDIMM/LRDIMM
1 PCI-E 4.0 x16 (LP) slot
dedicated LAN
• Software Out of Band License key
(SFT-OOB-LIC) included for
OOB BIOS management
fully hybrid drive support
Broadcom BCM57416 Controller
7 USB 3.0 (4 rear, 2 front, 1 Type A)
Platinum Level High-efficiency
(Full redundancy based on
configuration and application load)
