SERVER SYSTEM 1U SATA/SYS-5019A-FTN10P SUPERMICRO

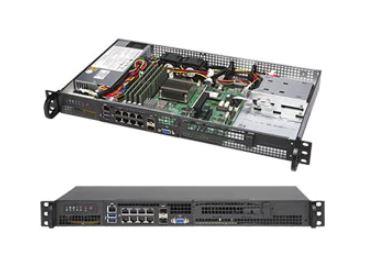

SERVER SYSTEM 1U SATA/SYS-5019A-FTN10P SUPERMICRO
Case Type 1U rack | Built-in CPU model Atom C3758 | 1xPCI-Express 3.0 4x | 2xM.2 | 1x15pin D-sub | 2xUSB 3.0 | 2xSFP | 9xRJ45 | Memory type DDR4 | Frequency speed 2400/2133/1866/1600 MHz | Memory slots 4 | PSU Output Power 200 Watts | FlexATX | Cooling & Ventilation System 2x 40x28mm 4-PIN PWM Fan, Optional 1x 40x28mm 4-PIN PWM Fan

Not available

1 316,68€

Add to wishlist Compare
Description Product data Liisi hire-purchase LHV hire-purchase ESTO hire-purchase
Vendor code: SYS-5019A-FTN10P
Manufacturer: SUPERMICRO
Unit Gross Weight: 5.44 kg
Shipping box quantity: 1
Unit Brutto Volume: 0.045 cubm
Vendor Homepage: www.supermicro.com/en/products/system/1U/5019/SYS-5019A-FTN10P.cfm
Unit Net Weight: 3.62 kg
Dimensions: 43x437x249mm
USB 3.0: 2
Case Type: 1U rack
PSU Output Power: 200 Watts
15pin D-sub: 1
Memory type: DDR4
Frequency speed: 1600 MHz
Frequency speed: 1866 MHz
Frequency speed: 2133 MHz
Frequency speed: 2400 MHz
Memory slots: 4
RJ45: 9
M.2: 2
Cooling & Ventilation System: 2x 40x28mm 4-PIN PWM Fan, Optional 1x 40x28mm 4-PIN PWM Fan
SFP: 2
Built-in CPU model: Atom C3758
PCI-Express 3.0 4x: 1
FlexATX: Yes
Network Security Appliance
Edge Computing Server
Virtualization Server

1. Intel® Atom® processor C3758,
    Single socket FCBGA 1310;
    8-Core, TDP 25W
2. 1x 3.5" or 4x 2.5" internal drive bays
3. 1 PCI-E 3.0 x4, 1 M.2 (M-Key 2242/
    2280, SATA3/PCI-E 3.0 x2), 1 M.2 (B-Key
    3042/2280, SATA3/PCI-E 3.0 x2/USB 3.0)
4. Up to 256GB ECC RDIMM DDR4
    2400MHz or 64GB ECC/non-ECC
    UDIMM in 4 DIMM slots
5. 8 RJ45 GbE LAN, 2 SFP GbE LAN,
    1 dedicated IPMI RJ45 GbE LAN
6. 2 USB 3.0, 1 VGA, 1 SuperDOM, TPM
7. 2x 40x28mm 4-pin PWM fans,
    optional 1x 40x28mm 4-pin fan
8. 200W Low-noise AC-DC power supply
