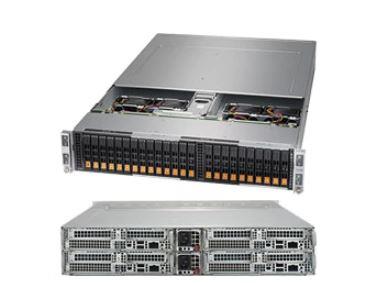

SERVER SYSTEM 2U/AS-2123BT-HNR SUPERMICRO


SERVER SYSTEM 2U/AS-2123BT-HNR SUPERMICRO
Case Type 2U rack | Socket SP3 | CPU's AMD EPYC | Maximum number of CPUs 2 | 2xPCI-Express 3.0 16x | 1xM.2 | 1x15pin D-sub | 2xUSB 3.0 | 1xRJ45 | 1xCOM via Header | Memory type DDR4 | Frequency speed 2666 MHz | Memory features RDIMM/ECC | Memory slots 16 | PSU Output Power 2600 Watts | Cooling & Ventilation System 4 Heavy duty 8cm PWM fans

Not available

8 197,42€

Add to wishlist Compare
Description Product data Liisi hire-purchase LHV hire-purchase ESTO hire-purchase
Vendor code: AS-2123BT-HNR
Manufacturer: SUPERMICRO
Unit Gross Weight: 38.6 kg
Shipping box quantity: 1
Unit Brutto Volume: 0.192 cubm
Vendor Homepage: www.supermicro.com/en/Aplus/system/2U/2123/AS-2123BT-HNR.cfm
Unit Net Weight: 24.7 kg
Dimensions: 438x88x724mm
USB 3.0: 2
Case Type: 2U rack
PSU Output Power: 2600 Watts
15pin D-sub: 1
Socket: SP3
Memory type: DDR4
Frequency speed: 2666 MHz
Memory features: ECC
Memory features: RDIMM
Module form factor: 288-pin DIMM
Memory slots: 16
RJ45: 1
PCI-Express 3.0 16x: 2
M.2: 1
Cooling & Ventilation System: 4 Heavy duty 8cm PWM fans
Maximum number of CPUs: 2
CPU's: AMD EPYC
COM via Header: 1
- Compute Intensive Application
- HPC, Data Center, Enterprise Server
- Hyperscale / Hyperconverged

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1.Dual AMD EPYC™ 7000-Series Processors
2. Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM slots
3. 2 PCI-E 3.0 x16 (LP) slot; 1 SIOM card support (flexible networking) Note: must bundle with Network card
4. Integrated IPMI 2.0 + KVM with dedicated LAN
• Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management
5. 6 Hot-swap 2.5" NVMe drive bays
M.2 Interface: 1 SATA/PCI-E 3.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-key
6. Video via Aspeed AST2500 BMC
7. 2600W Redundant Power Supplies
Titanium Level (96%)
