Switch|DELL|N1548P|Type L2|48x10Base-T / 100Base-TX / 1000Base-T|4xSFP+|1xUSB 2.0|1xConsole|PoE+ ports 48|500 Watts|210-AEWB_273558622
Type L2 | Stacking up to 4 | Built-in management | 48x10Base-T / 100Base-TX / 1000Base-T | 4xSFP+ | 1xUSB 2.0 | 1xConsole | IEEE 802.1ab | IEEE 802.1D | IEEE 802.1p | IEEE 802.1Q | IEEE 802.2 | IEEE 802.3 | IEEE 802.3ab | IEEE 802.3ac | IEEE 802.3ad | IEEE 802.3ae | IEEE 802.3af | IEEE 802.3at | IEEE 802.3az | IEEE 802.3u | IEEE 802.3x | IEEE 802.3z | IEEE 802.1s | IEEE 802.1x | IEEE 802.1v | IEEE 802.1w | PoE+ ports 48 | PoE power budget 500 Watts | Auto-negotiation | Full-duplex | Switching ca
Not available
1 908,90€
Description
Product data
Liisi hire-purchase
LHV hire-purchase
ESTO hire-purchase
Vendor code: | 210-AEWB_273558622 |
EAN: | 132924900000 |
Manufacturer: | DELL |
Unit Gross Weight: | 8.8 kg |
Shipping box quantity: | 1 |
Unit Brutto Volume: | 0.0488785 cubm |
Shipping Box Width: | 56.4 cm |
Shipping Box Depth: | 55.2 cm |
Shipping Box Height: | 15.7 cm |
Shipping Box Weight: | 8.8 kg |
Vendor Homepage: | i.dell.com/sites/csdocuments/Shared-Content_data-Sheets_Documents/en/aa/Dell_Networking_N1500_Series_SpecSheet.pdf |
Unit Net Weight: | 7 kg |
Dimensions: | 43x440x387 mm |
USB 2.0: | 1 |
Model name: | N1548P |
Switch type: | L2 |
Console: | 1 |
Power supply: | Inbuilt |
IEEE 802.1p: | Yes |
IEEE 802.1Q: | Yes |
IEEE 802.3ab: | Yes |
IEEE 802.3u: | Yes |
IEEE 802.3x: | Yes |
IEEE 802.3z: | Yes |
IEEE 802.3ad: | Yes |
Auto-negotiation: | Yes |
Full-duplex: | Yes |
IEEE 802.1D: | Yes |
IEEE 802.3: | Yes |
10Base-T / 100Base-TX / 1000Base-T: | 48 |
Primary port count: | 48 |
Switching capacity: | 176 Gbps |
Forwarding rate: | 164 Mpps |
IEEE 802.3at: | Yes |
PoE+ ports: | 48 |
IEEE 802.1w: | Yes |
IEEE 802.1s: | Yes |
IEEE 802.3af: | Yes |
IEEE 802.1x: | Yes |
SFP+: | 4 |
IEEE 802.3ae: | Yes |
IEEE 802.3ac: | Yes |
PoE power budget: | 500 Watts |
Built-in management: | Yes |
Stacking: | up to 4 |
IEEE 802.1v: | Yes |
Software included: | DELL EMC Networking OS 6 |
IEEE 802.2: | Yes |
IEEE 802.1ab: | Yes |
IEEE 802.3az: | Yes |

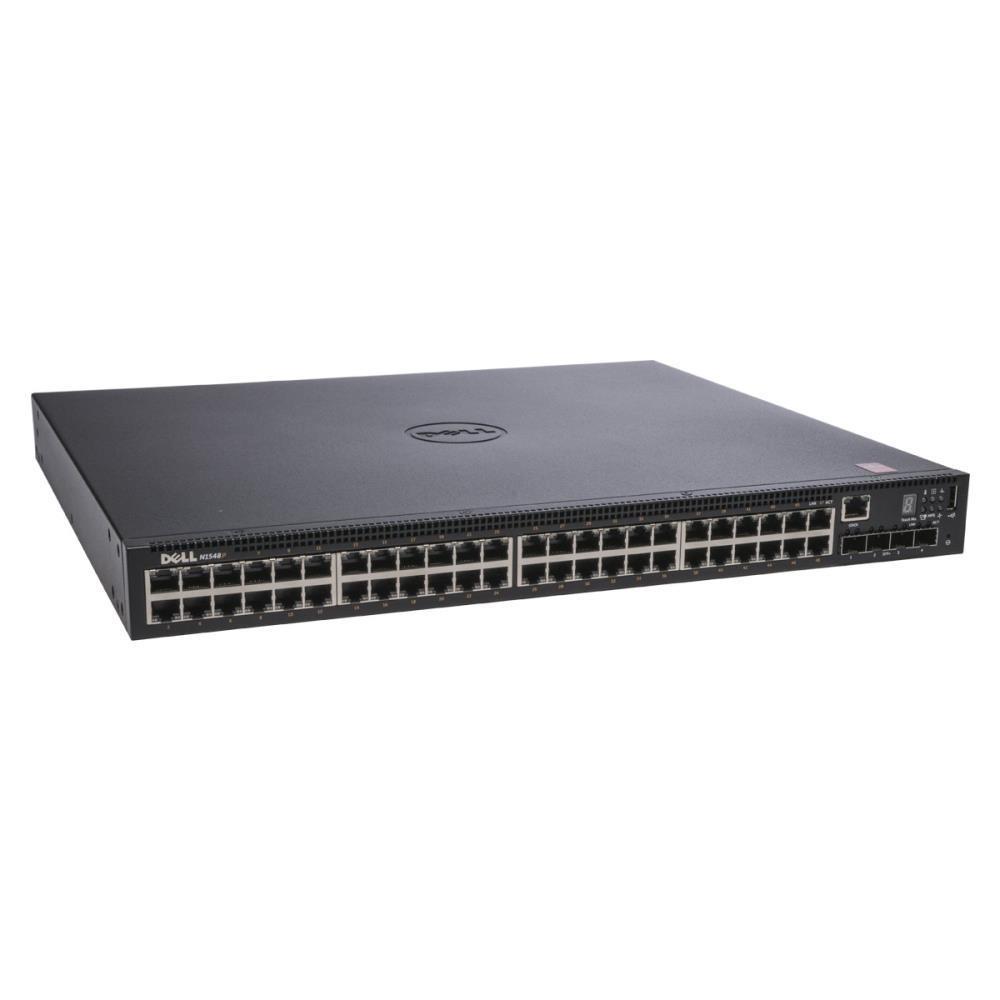

Dell Networking N1548P, 48x 1GbE PoE (up to 24 PoE+ port support for up to total 500W w/o external PSU) + 4x 10GbE SFP+ fixed ports, Stacking, 1U Rack mountable. Optional External PSU MPS-1000 for full 48 PoE+ port support.
The N1500 switch series offers a power-efficient Gigabit Ethernet (GbE) network-access switching solution with integrated 10GbE uplinks. The N1500 switch series has high-performance capabilities and wire-speed performance, utilizing a non-blocking architecture to handle unexpected traffic loads easily. These switches offer simple management and scalability via an 40Gbps (full-duplex) high-availability stacking architecture that allows management of up to four switches from a single IP address.
N-Series switches include Dell EMC Networking OS 6, designed for easier deployment, greater interoperability and a lower learning curve for network administrators. One common command line interface (CLI) and graphic user interface (GUI) using a well-known command language gets skilled network administrators productive quickly. With USB auto-configuration, network administrators can rapidly deploy mirrored configurations to numerous devices by simply inserting a USB key.
Optional MPS-1000 external power supply (1000W) for PoE+ switches N1524P and N1548P.
The Dell EMC Networking N1548P switch has an internal 600-watt power supply feeding up to 24 PoE or PoE+ devices (up to 500W total PoE power budget). With additional modular power supply (MPS-1000) provides 1000 watts and gives full power coverage for all 48 PoE+ devices (1500W).
The N1500 switch series offers a power-efficient Gigabit Ethernet (GbE) network-access switching solution with integrated 10GbE uplinks. The N1500 switch series has high-performance capabilities and wire-speed performance, utilizing a non-blocking architecture to handle unexpected traffic loads easily. These switches offer simple management and scalability via an 40Gbps (full-duplex) high-availability stacking architecture that allows management of up to four switches from a single IP address.
N-Series switches include Dell EMC Networking OS 6, designed for easier deployment, greater interoperability and a lower learning curve for network administrators. One common command line interface (CLI) and graphic user interface (GUI) using a well-known command language gets skilled network administrators productive quickly. With USB auto-configuration, network administrators can rapidly deploy mirrored configurations to numerous devices by simply inserting a USB key.
- 80 Plus-certified efficient integrated power supply
- Redundant variable-speed cooling fans
- Energy-efficient Ethernet and low-power physical layer (PHYs) to help reduce power to inactive ports and idle links
Optional MPS-1000 external power supply (1000W) for PoE+ switches N1524P and N1548P.
The Dell EMC Networking N1548P switch has an internal 600-watt power supply feeding up to 24 PoE or PoE+ devices (up to 500W total PoE power budget). With additional modular power supply (MPS-1000) provides 1000 watts and gives full power coverage for all 48 PoE+ devices (1500W).
