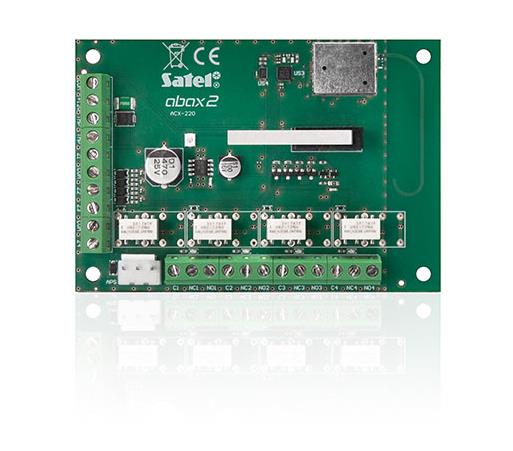

ZONES/OUTPUTS EXPANSION MODULE/WIRELESS ACX-220 SATEL
Dimensions 126 x 158 x 32 mm | Unit Brutto Volume 0.00119 cubm
Not available
87,32€
Description
Product data
Liisi hire-purchase
LHV hire-purchase
ESTO hire-purchase
Vendor code: | ACX-220 |
EAN: | 5905033335851 |
Manufacturer: | SATEL |
Unit Gross Weight: | 0.279 kg |
Shipping box quantity: | 1 |
Unit Brutto Volume: | 0.00119 cubm |
Shipping Box Width: | 5 cm |
Shipping Box Depth: | 17 cm |
Shipping Box Height: | 14 cm |
Shipping Box Weight: | 0.279 kg |
Vendor Homepage: | www.satel.pl/en/produktid/1139 |
Unit Net Weight: | 0.204 kg |
Dimensions: | 126 x 158 x 32 mm |
The ACX-220 module enables wired devices (detectors, sirens, etc.) to be used in the ABAX 2/ABAX wireless system. It has 4 programmable zones with support for the NO and NC type wire detectors and EOL, 2 EOL configurations, as well as 4 programmable relay outputs.
Configuration of settings and updating of firmware of ACX-220 are carried out remotely. In the ABAX 2 system, two-way radio communication is encrypted using is AES encrypted.
The expander is supplied with 12 V DC voltage and works together with the APS-412, APS-612 or APS-1412 buffer power supply units.
The device has a tamper switch that reacts to opening of enclosure.
- adding wired devices to the ABAX 2 or ABAX system
- compatible with:
-- ABAX 2 system controllers (ACU-220 and ACU-280) and ARU-200 radio signal repeater
-- ABAX (ACU-120, ACU-270 and older ACU-100, ACU-250), INTEGRA 128-WRL control panel and ARU-100 radio signal repeater
- range of radio communication in the open area:
-- in ABAX 2: up to 2000 m (with ACU-220) / up to 1600 m (with ACU-280)
-- in ABAX: up to 500 m
- 4 programmable zones - support for wired detectors in NO, NC, EOL, 2EOL/NO and 2EOL/NC configurations
- 4 programmable relay outputs
- remote configuration and update of the firmware
- tamper protection
- power supply: 12 V DC, compatible with APS-412, APS-612, APS-1412
Configuration of settings and updating of firmware of ACX-220 are carried out remotely. In the ABAX 2 system, two-way radio communication is encrypted using is AES encrypted.
The expander is supplied with 12 V DC voltage and works together with the APS-412, APS-612 or APS-1412 buffer power supply units.
The device has a tamper switch that reacts to opening of enclosure.
- adding wired devices to the ABAX 2 or ABAX system
- compatible with:
-- ABAX 2 system controllers (ACU-220 and ACU-280) and ARU-200 radio signal repeater
-- ABAX (ACU-120, ACU-270 and older ACU-100, ACU-250), INTEGRA 128-WRL control panel and ARU-100 radio signal repeater
- range of radio communication in the open area:
-- in ABAX 2: up to 2000 m (with ACU-220) / up to 1600 m (with ACU-280)
-- in ABAX: up to 500 m
- 4 programmable zones - support for wired detectors in NO, NC, EOL, 2EOL/NO and 2EOL/NC configurations
- 4 programmable relay outputs
- remote configuration and update of the firmware
- tamper protection
- power supply: 12 V DC, compatible with APS-412, APS-612, APS-1412
